3 min read

Tidy Data (tidy, purrr)

2017/03/14

We have learned basic data manipulation with dplyr. Now it is time to learn reshaping of tabular data with tidyr and looping through elements with purrr

dplyr

  • spread - move values into column names
  • gather - move column names into values
  • separate - separate variables that share a column
  • unite - unite a variable that is split across several columns

spread

Imagine you want to calculate a ratio of number of males to females in babynames dataset. You can start as

babynames %>%
  group_by(year, sex) %>%
  summarise(n = sum(n))

And then you need something that from n generates two columns males and females.

babynames %>%
  group_by(year, sex) %>%
  summarise(n = sum(n)) %>%
  spread(sex, n) %>%
  head()
## Source: local data frame [6 x 3]
## Groups: year [6]
##
##    year      F      M
##   <dbl>  <int>  <int>
## 1  1880  90993 110491
## 2  1881  91954 100745
## 3  1882 107850 113688
## 4  1883 112321 104629
## 5  1884 129022 114445
## 6  1885 133055 107800

Challenge 1:

Modify the code above to plot the percent of childern that are male in babynames dataset:

gather

gather is inverse function to spread, its collapses multiple columns into two columns, see ?gather.

Challenge 2:

For the wide transformation of babynames, use gather to transform the dataset back into the long format with three columns.

wide <- babynames %>%
  group_by(year, sex) %>%
  summarise(n = sum(n)) %>%
  spread(sex, n)

separate and unite

separate splits a column by dividing values at a specific character. unite unites columns into single column by combining cells.

iris dataset

Famous Fisher’s dataset with measurements of sepal / petal length and width for Iris setosa, versicolor, and virginica.

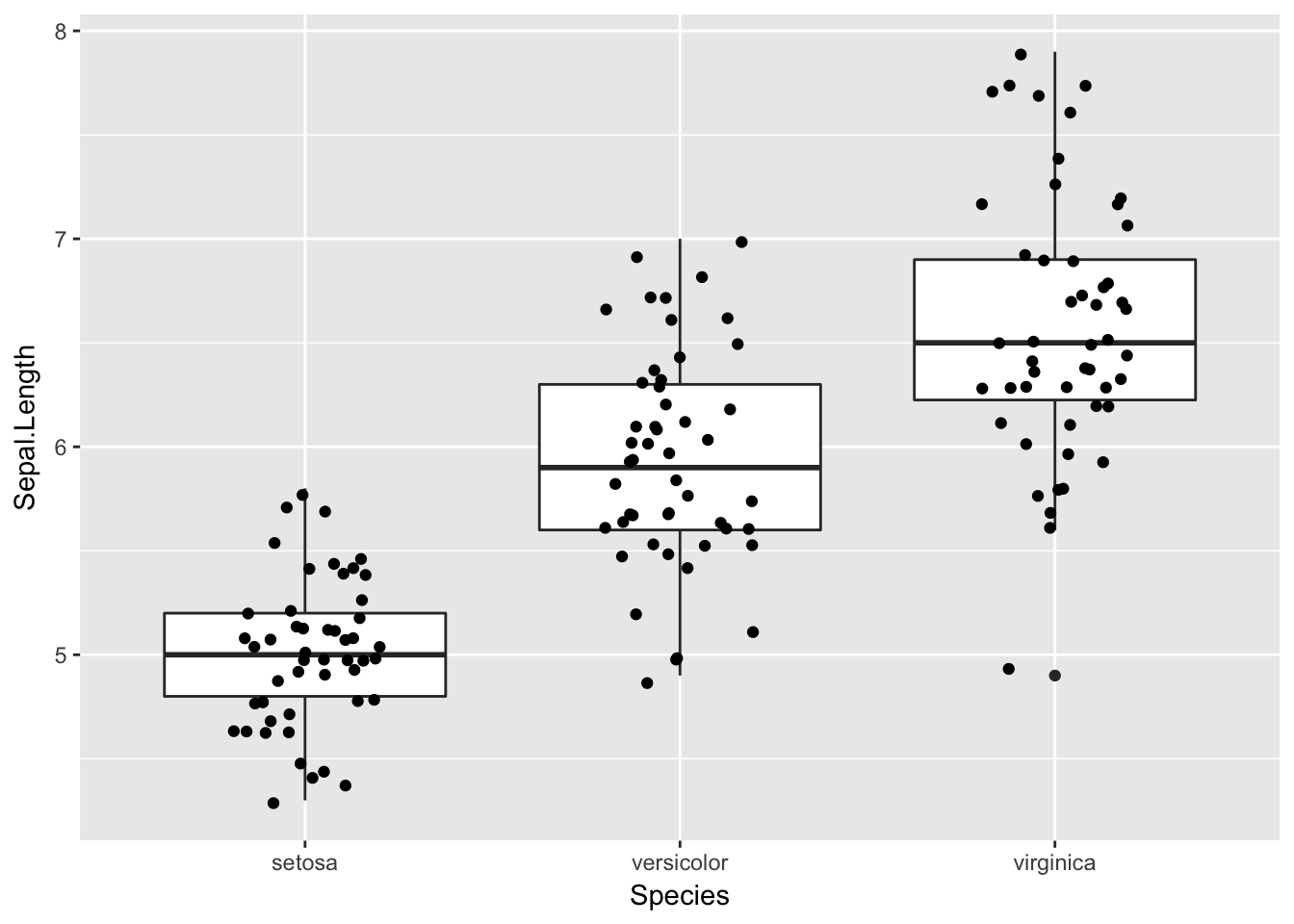

Let us start with some data inspection. What is the distribution of Sepal.Length for each specie?

ggplot(iris, aes(x = Species, y = Sepal.Length)) +
  geom_boxplot() +
  geom_jitter(width=0.2)

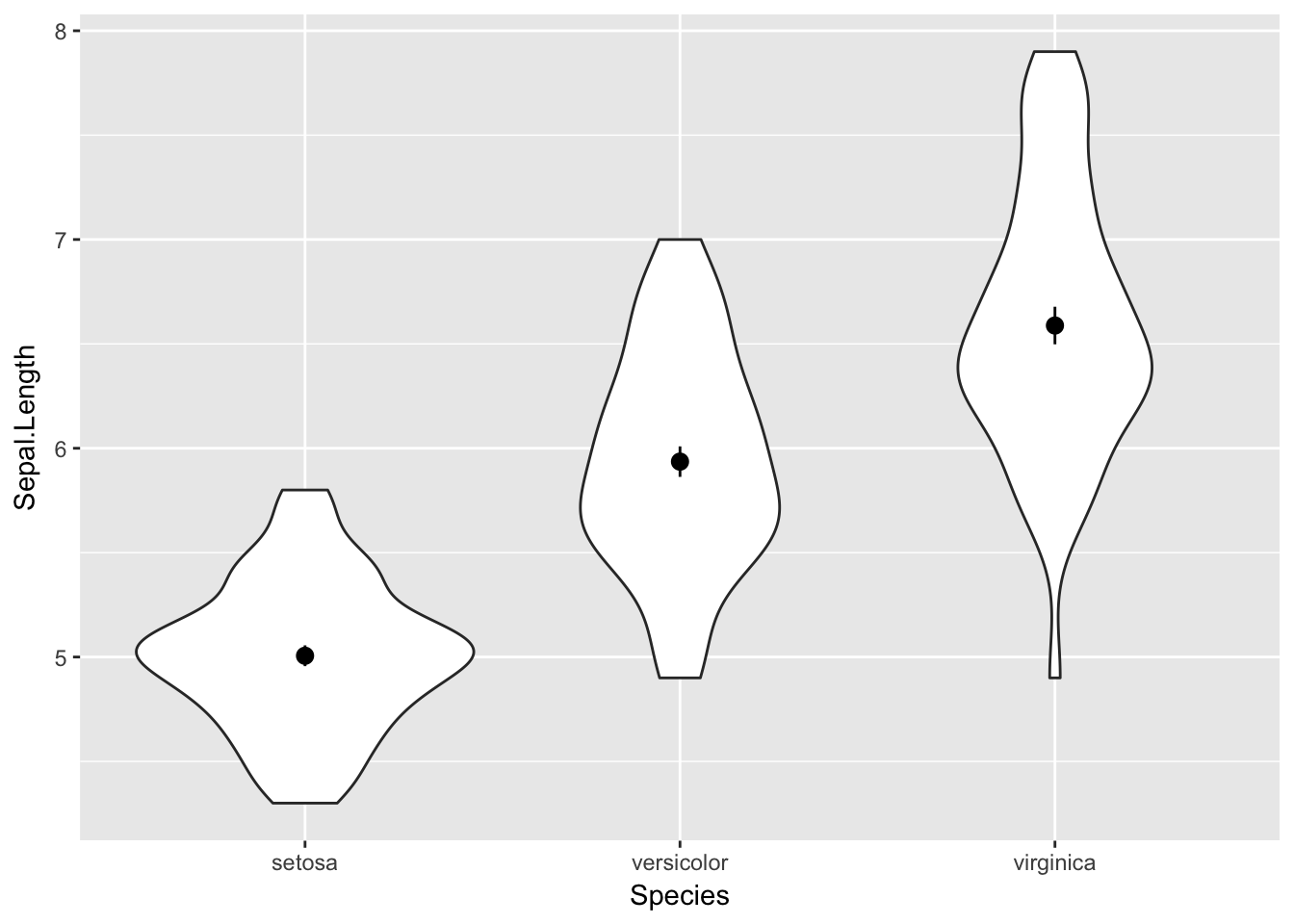

Instead of boxplots and data points, we can plot violins and means.

stats <- iris %>%
  group_by(Species) %>%
  summarize(average = mean(Sepal.Length),
            se = sd(Sepal.Length) / sqrt(n())) %>%
  ungroup()

ggplot(iris, aes(x = Species, y = Sepal.Length)) +
  geom_violin() +
  geom_pointrange(data= stats, aes(x = Species, y = average,
                                    ymin = average-se, ymax = average+se), size=0.5)

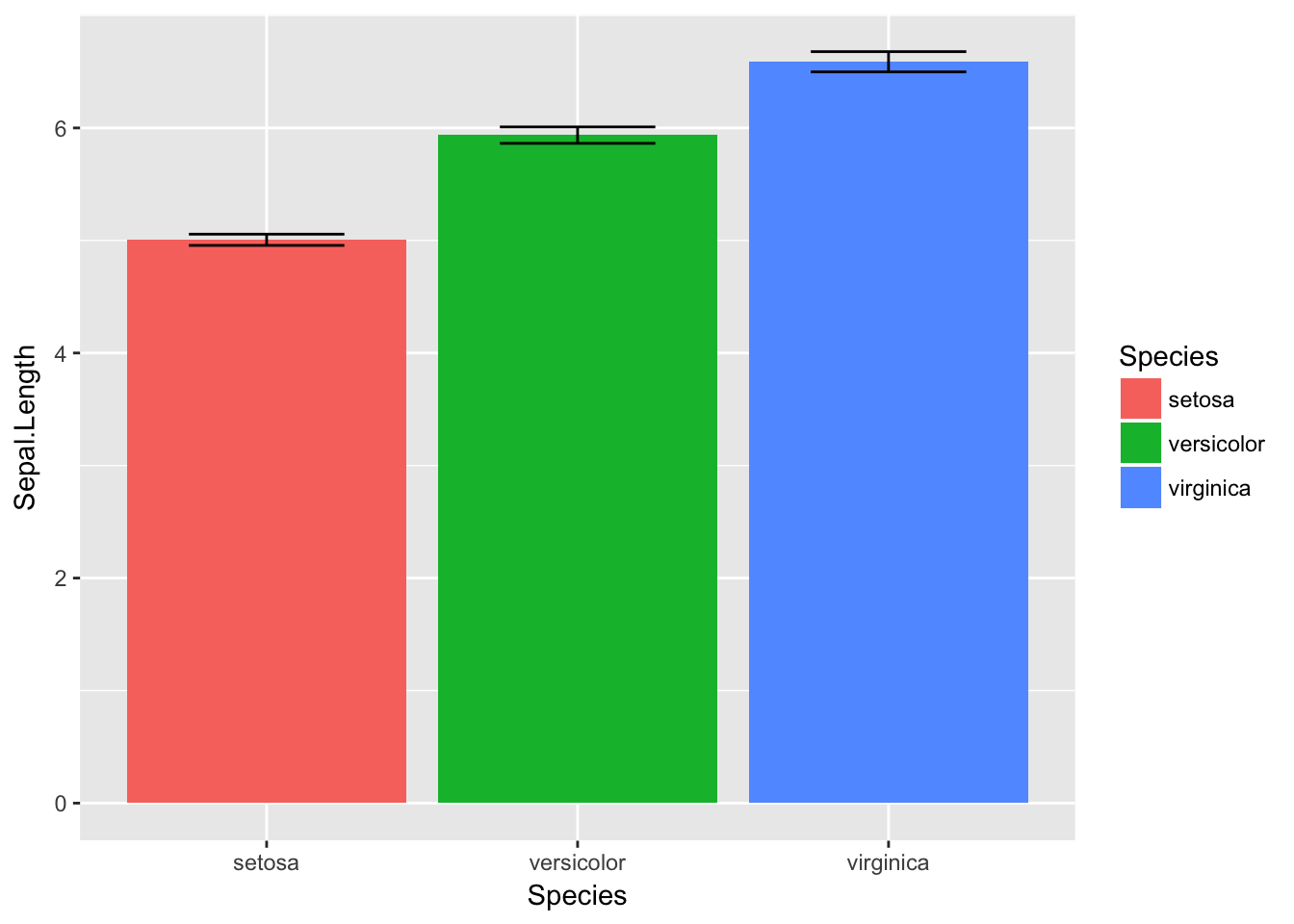

Or if somebody insist - barplots and error bars.

ggplot(stats, aes(x = Species, y = average, fill = Species)) +
  geom_bar(stat="identity") +
  geom_errorbar(data= stats, aes(ymin = average-se, ymax = average+se), width=0.5) +
  ylab("Sepal.Length")

Challenge 3

Now try to visualise not only Sepal.Length but also the remaining three variables into the one graph.

## notch went outside hinges. Try setting notch=FALSE.

purr

map = apply a function to each element of a vector

There are several flavours of map specifying what should be the type of output:

  • map(.x, .f, ...) - list
  • map_lgl(.x, .f, ...) - logical
  • map_chr(.x, .f, ...) - character
  • map_int(.x, .f, ...) - integer
  • map_dbl(.x, .f, ...) - double (real number)
  • map_df(.x, .f, ..., .id = NULL) - data frame
  • walk(.x, .f, ...): nothing (just run)

Challenge 4

For iris dataset, use map to calculate column means.

## Sepal.Length  Sepal.Width Petal.Length  Petal.Width
##     5.843333     3.057333     3.758000     1.199333

Summary

Sources:
