R Base Graphics

2017/02/28

One of the strengths of R is its ability to produce a wide range of plots. Multiple plotting libraries exist and even the base R graphics is powerful and can be mastered in a few hours.

X-Y Plotting

Basic plot call takes the following form plot(x=, y=), for example

height <- c(123, 145, 150, 167, 176)
weight <- c(40, 51, 55, 63, 64)

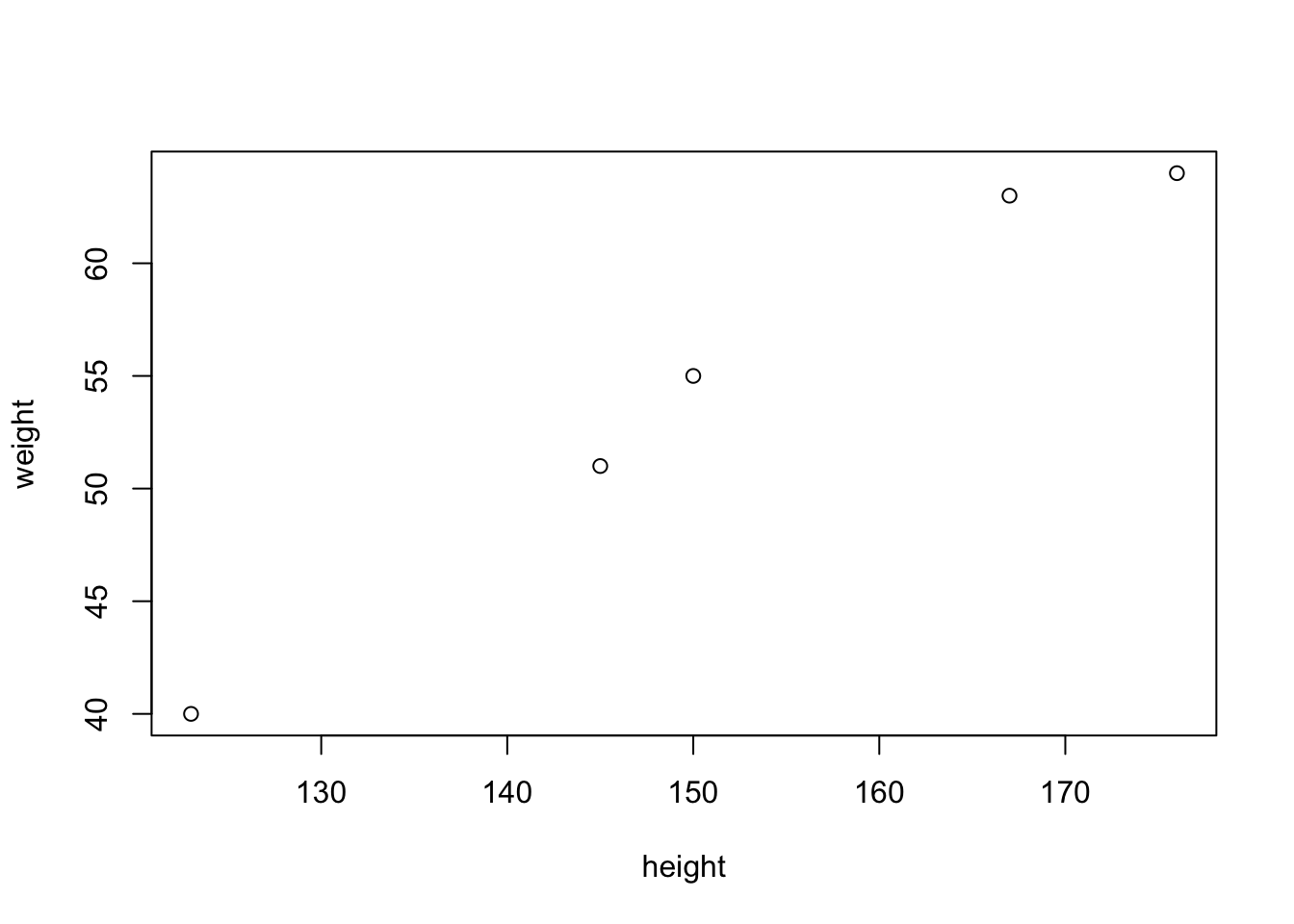

plot(height, weight)

Use main to set the title, xlab and ylab for x- and y- labels, xlim and ylim for x- and y- limits, type to set a type of the graph (“p”=points, “l”=lines, “b”=both, “n”=none) and col to choose colors.

Challenge 1:

Modify the code above to get points connected by a line

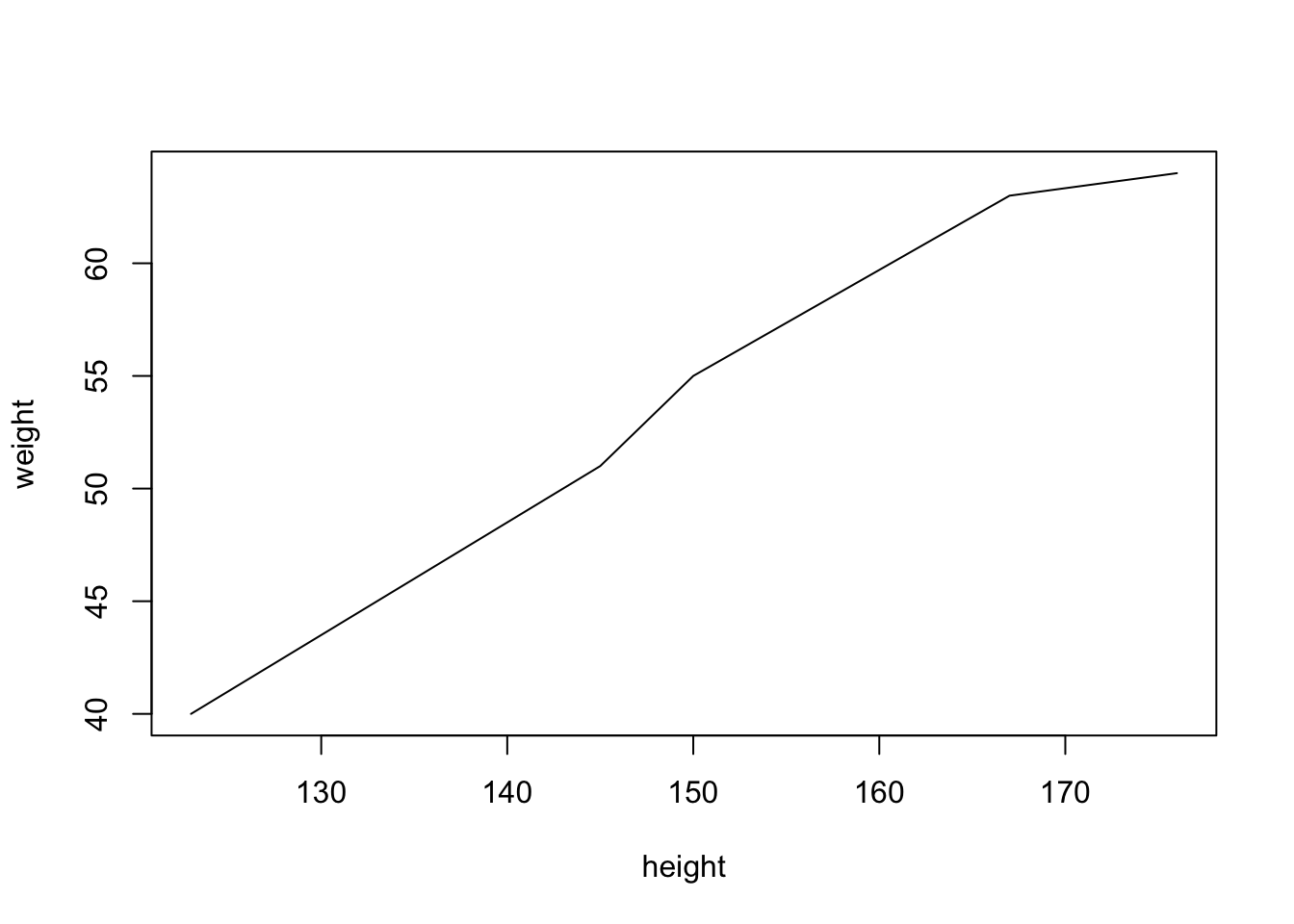

Or to see both points and a line like on the plot below.

To the existing plot, you can add lines (lines, abline), points (points), legend (legend), text (text) and other objects.

Gapminder dataset

Gapminder is a an excerpt of the Gapminder data on life expectancy, GDP per capita, and population by country. It is distributed as R package. The following code loads gapminder (if missing, installs it) and prints the first few lines:

# check if gapminder can be loaded, if not install it
if (!require("gapminder")) {
  install.packages("gapminder")
  library("gapminder")
}
## Loading required package: gapminder
data(gapminder)
head(gapminder)
##       country continent year lifeExp      pop gdpPercap
## 1 Afghanistan      Asia 1952  28.801  8425333  779.4453
## 2 Afghanistan      Asia 1957  30.332  9240934  820.8530
## 3 Afghanistan      Asia 1962  31.997 10267083  853.1007
## 4 Afghanistan      Asia 1967  34.020 11537966  836.1971
## 5 Afghanistan      Asia 1972  36.088 13079460  739.9811
## 6 Afghanistan      Asia 1977  38.438 14880372  786.1134

Type ?gapminder into your console to get info about the dataset and try to answer the following questions.

Challenge 2

How many rows and columns are in gapminder? What was the population of Czech Republic in 1952? Which country has the highest GDP per capita in 2007?

Challenge 3

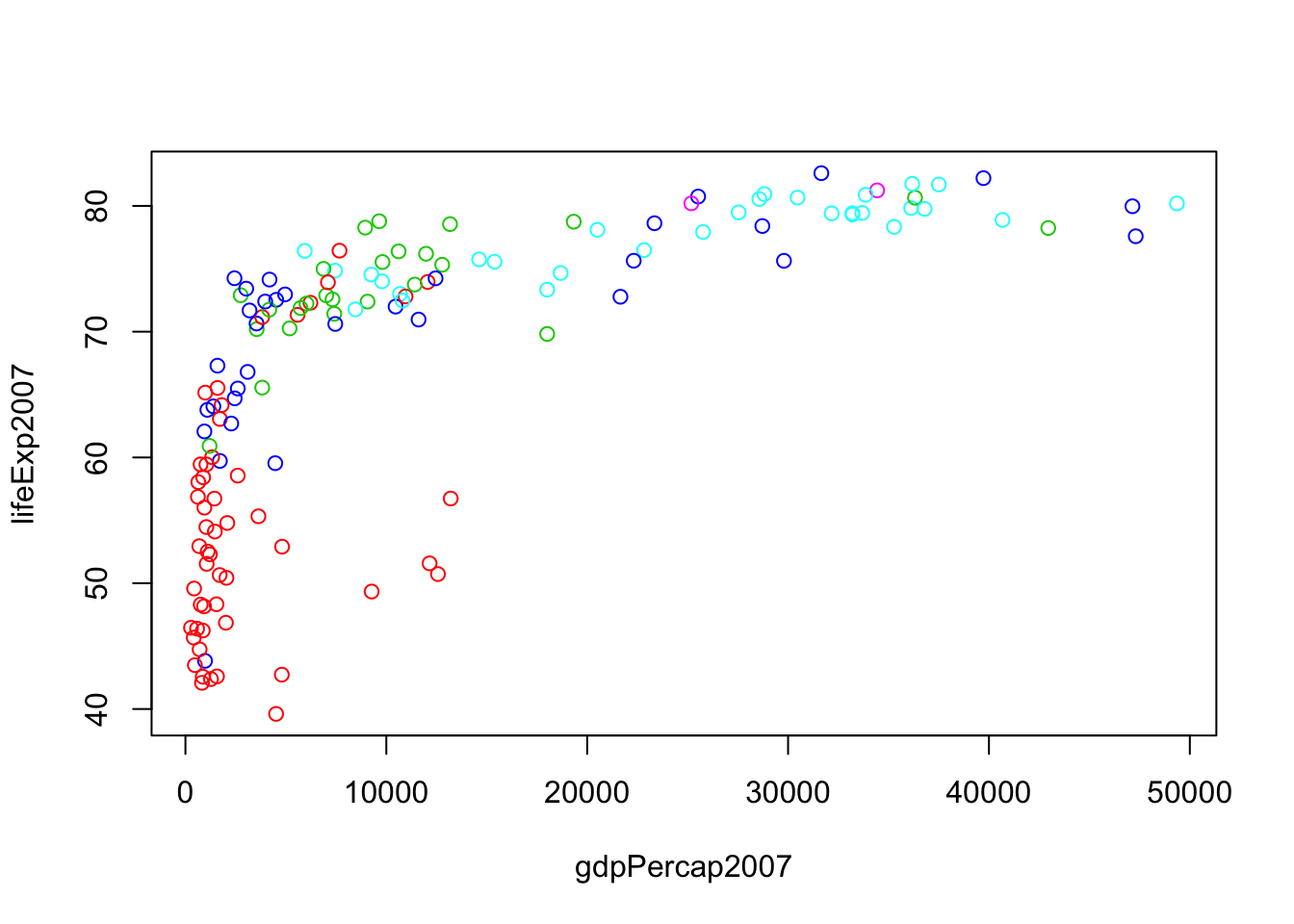

For 2007, make a scatter-plot of life expectancy vs. GDP per capita and color each state by its continent.

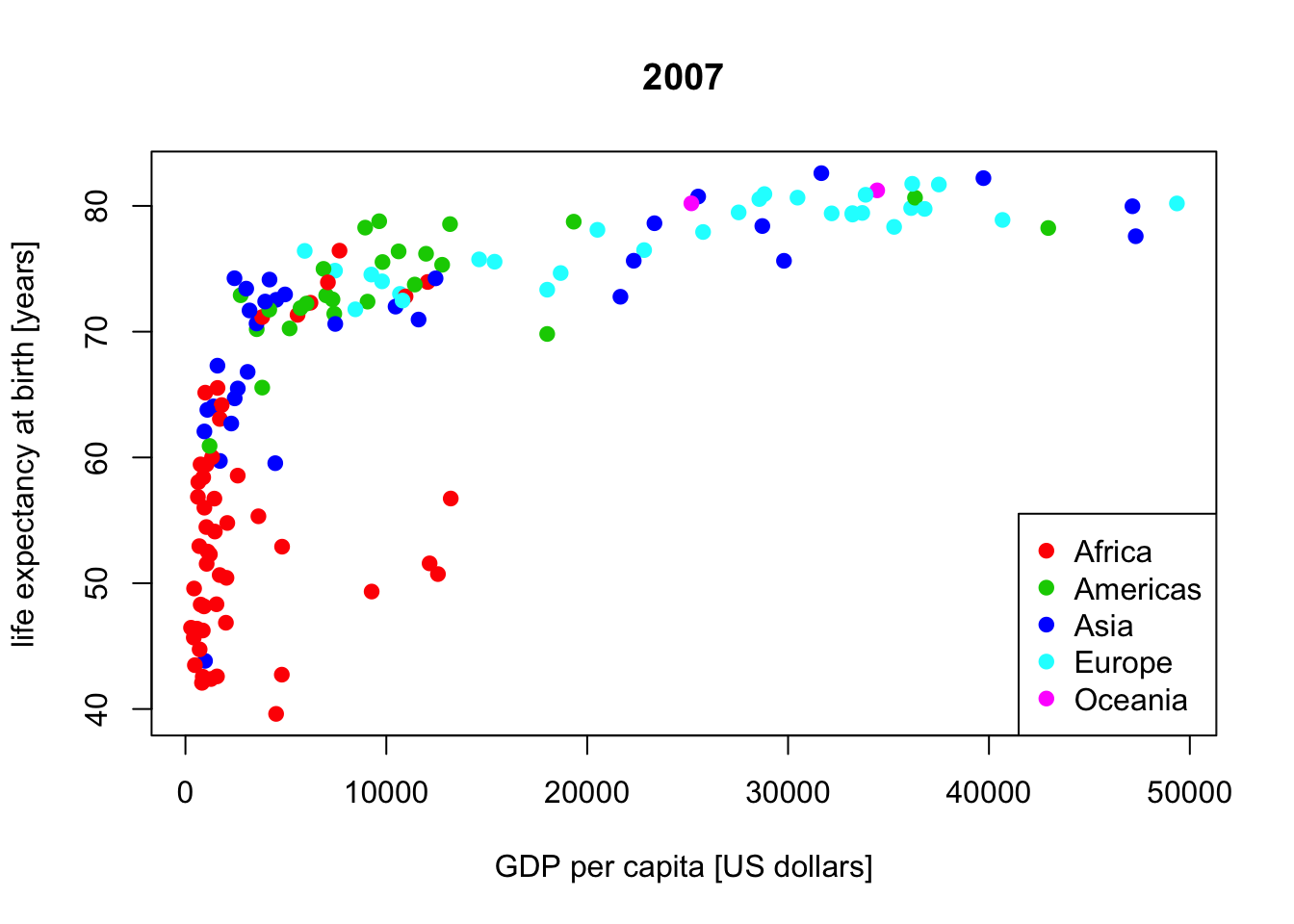

Now try to style the plot a bit by adding the title, labels and a legend.

Histogram

Histograms are plotted with hist function (see ?hist for help and examples).

Challenge 4

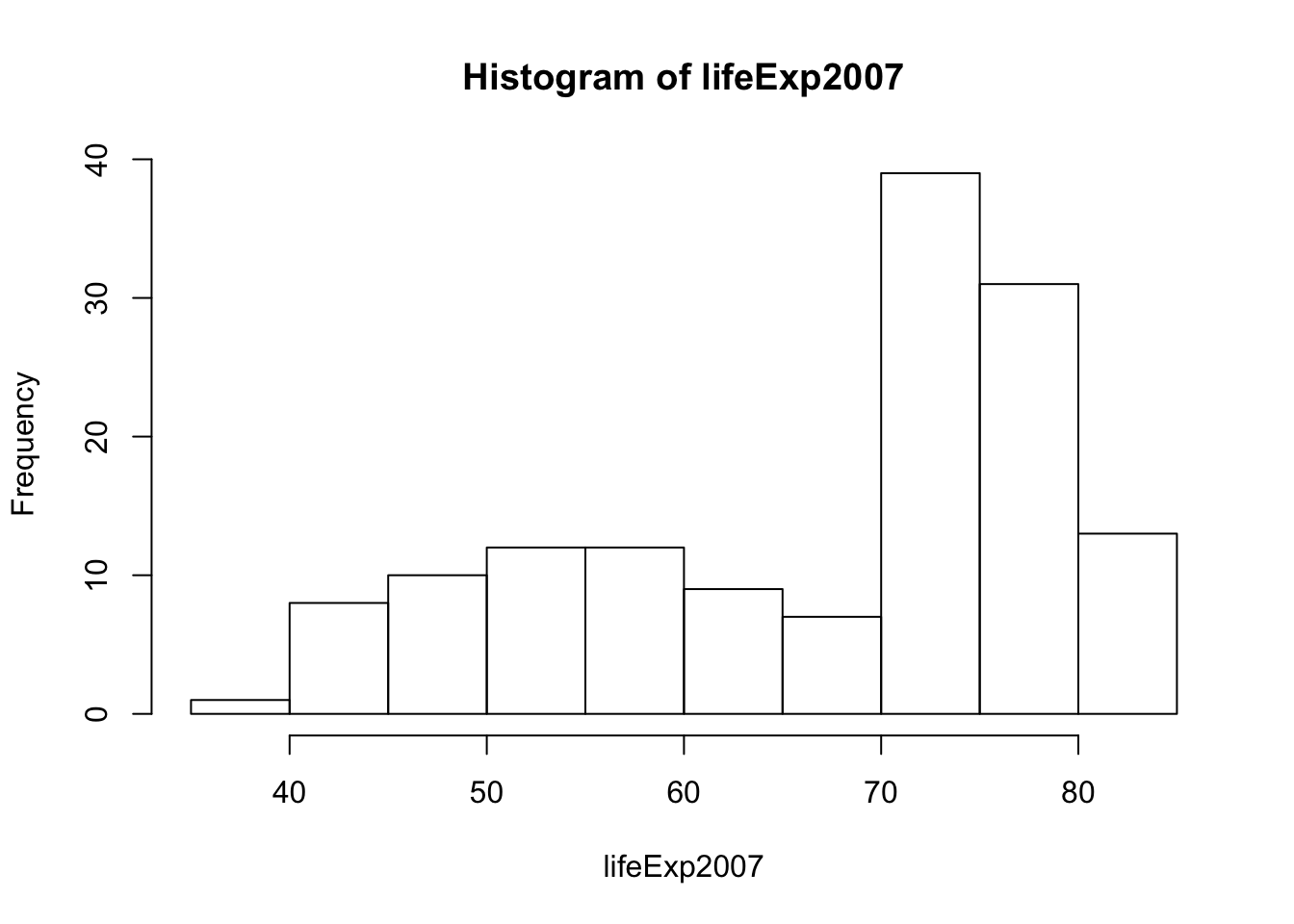

Plot a histogram of life expectancy in 2007 over all countries:

Barplot

Barplots are plotted with barplot function.

Challenge 5

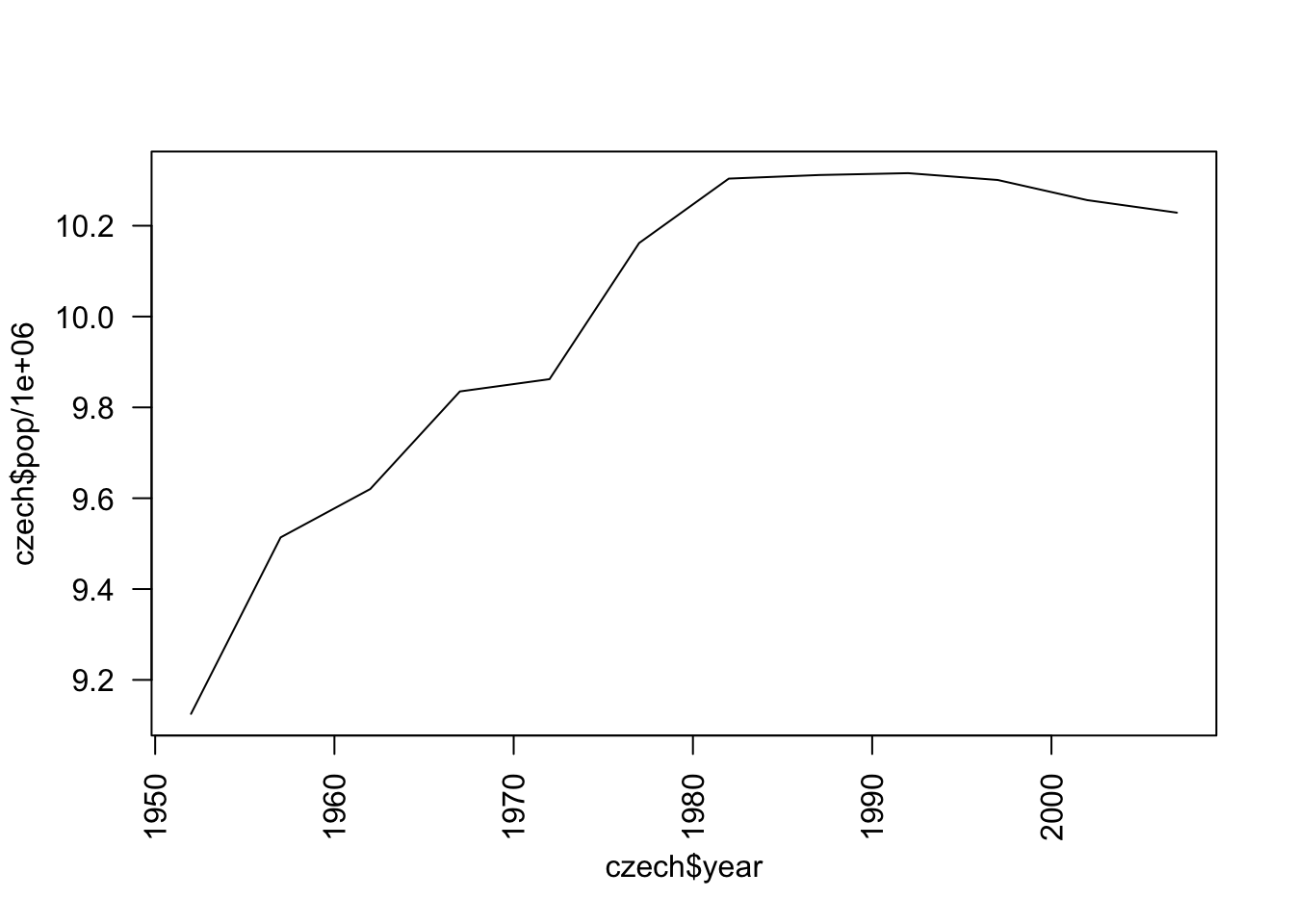

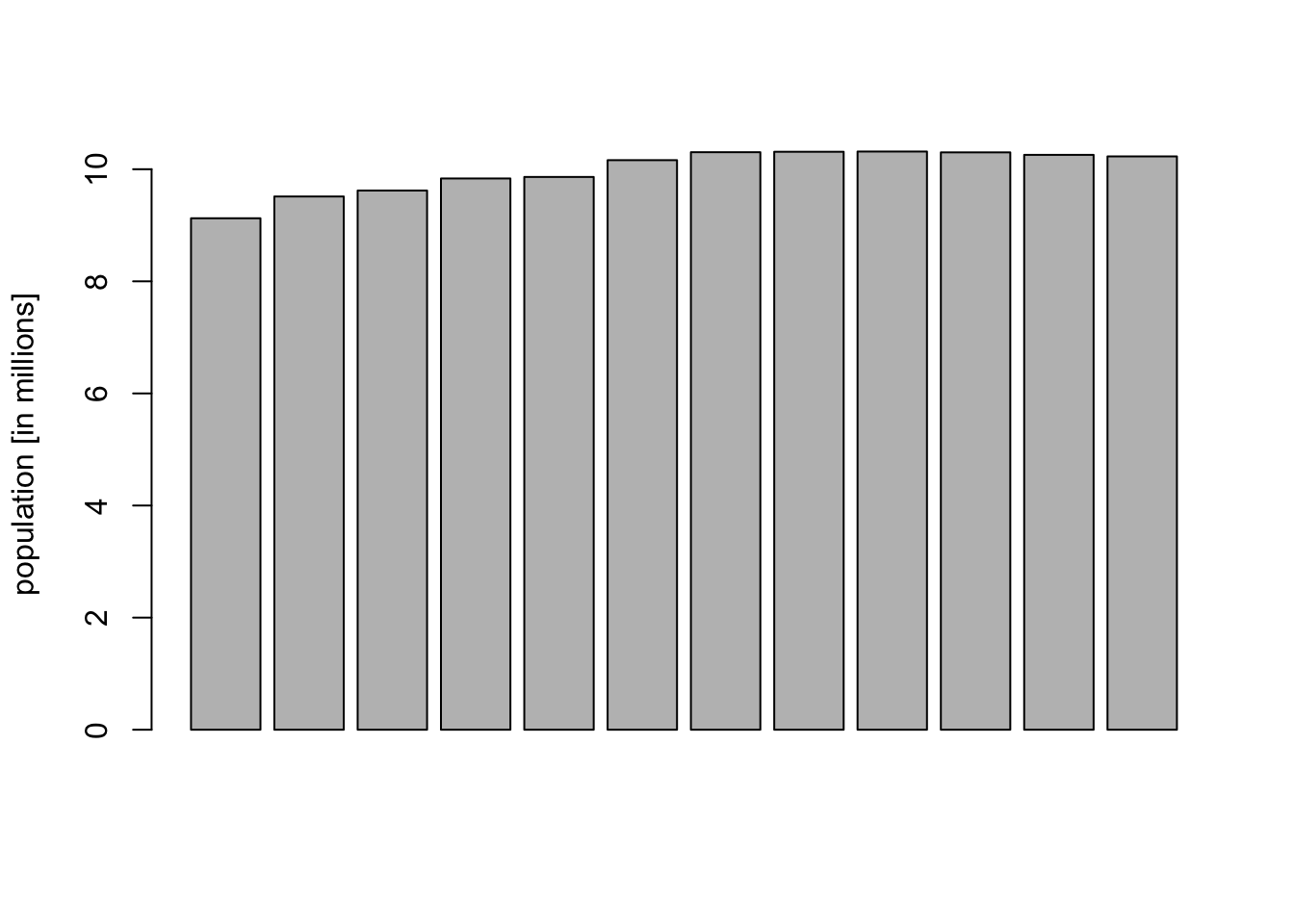

Visualize how the population of the Czech Republic grows by a line and a barplot. Which plot do you prefer?

More than one plot in a window

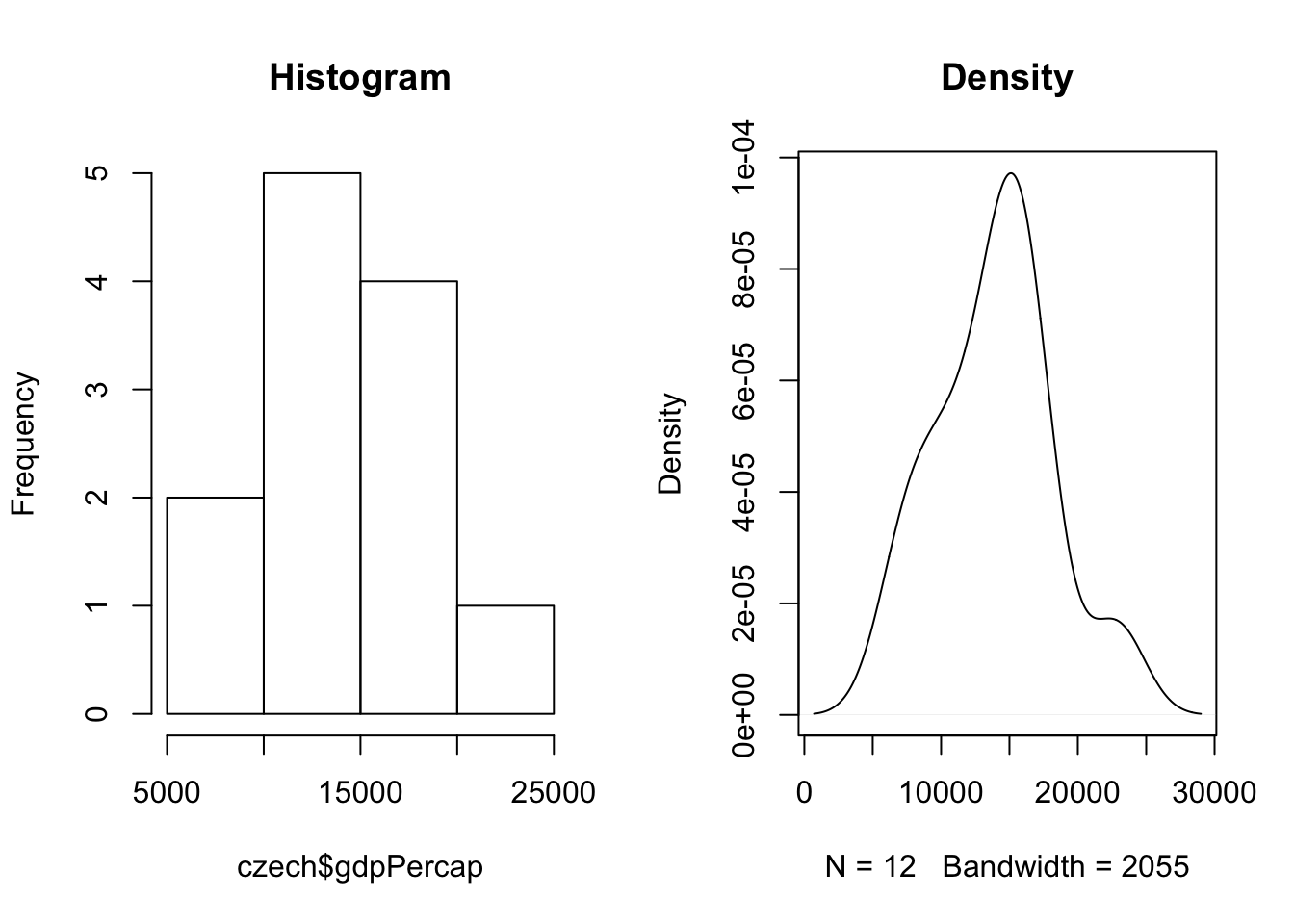

With a graphical parameter mfrow we can get two or more plots into one window (or file). For example, see the comparison of the histogram to a density plot below.

czech <- subset(gapminder, country == "Czech Republic")

par(mfrow = c(1,2)) # one row, two columns
hist(czech$gdpPercap, main="Histogram")
plot(density(czech$gdpPercap), main="Density")

Boxplot

Boxplots can be used to compare data from several groups.

Challenge 6

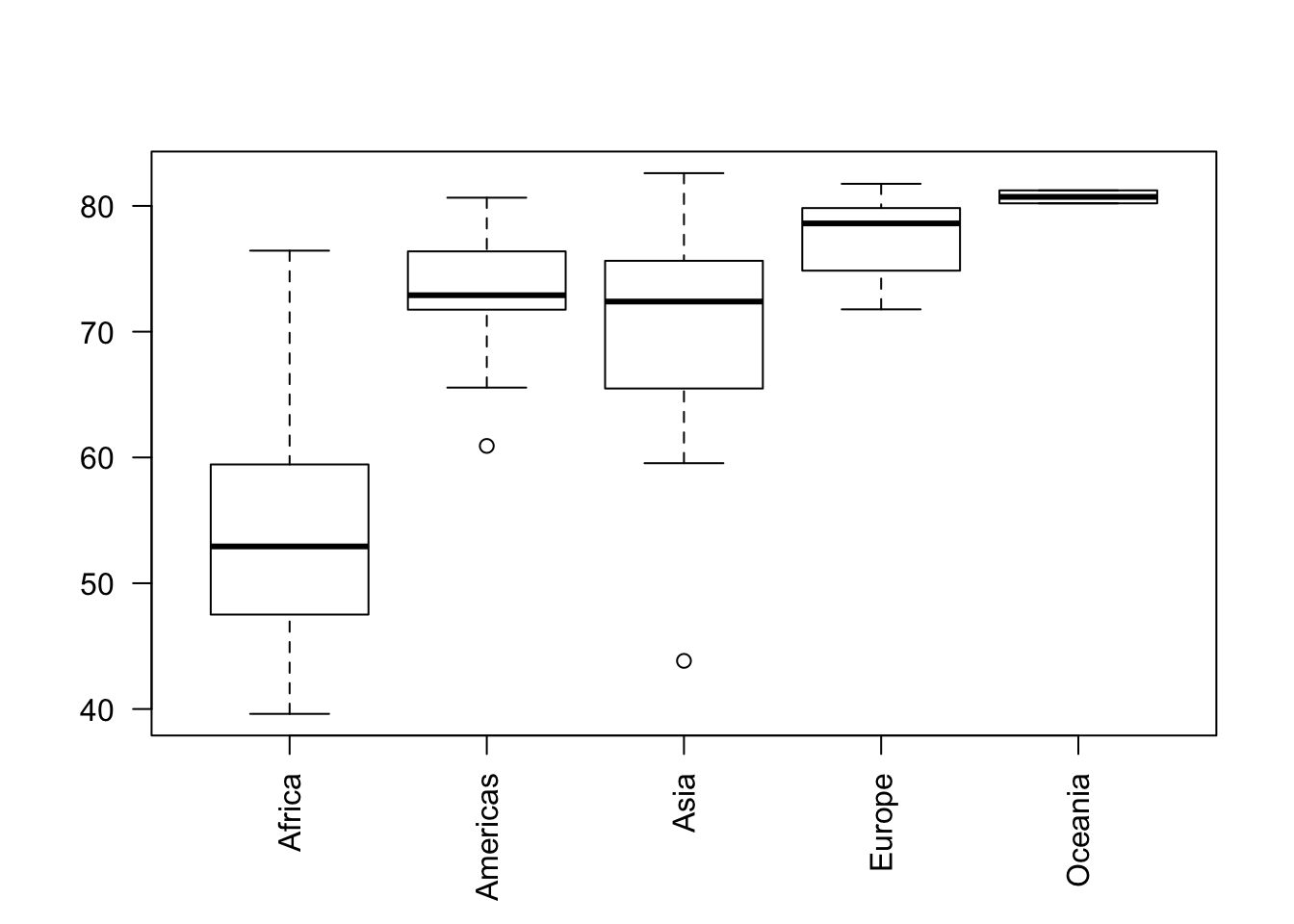

For 2007, compare life expectancy between the continents.

year2007 <- subset(gapminder, year == 2007)

# las = 2 plots text perpendicularly to axis
boxplot(lifeExp ~ continent, data=year2007, las=2)

Saving the plots

See the help and examples for pdf, png, dev.off and dev.copy functions.

Challenge 7

Save the last plot into PDF and PNG files.

Are the plots same or different? Why?

Summary

You can do almost anything with base graphics but some common actions are not straightforward (nice colors, faceting, legends, error bars). Complex graphs can be time consuming and their code hard to read.

R Base graphics is great for a quick exploratory analysis but for a publication level graphics, I prefer ggplot2. More about it next time.
